Introduction to DSK Korean Geared Motors – DX Series
The DSK DX Series Korean geared motors include the DR, DF, DK, and DS series, suitable for conveyors, agitators, packaging machines, feeders, and transmission systems.
Introduction to DSK Korean Geared Motors – DX Series
The DSK DX Series is a line of Korean geared motors belonging to the Industry Standard group, suitable for various industrial transmission systems.
Overview of DSK Korean Geared Motors – DX Series
DSK Korean geared motors DX Series are industrial gear motors from DSK Geared Motor – Daesung Industrial Co., Ltd. Machinery Division, designed for transmission systems that require speed reduction, increased torque, and stable operation in factory environments.

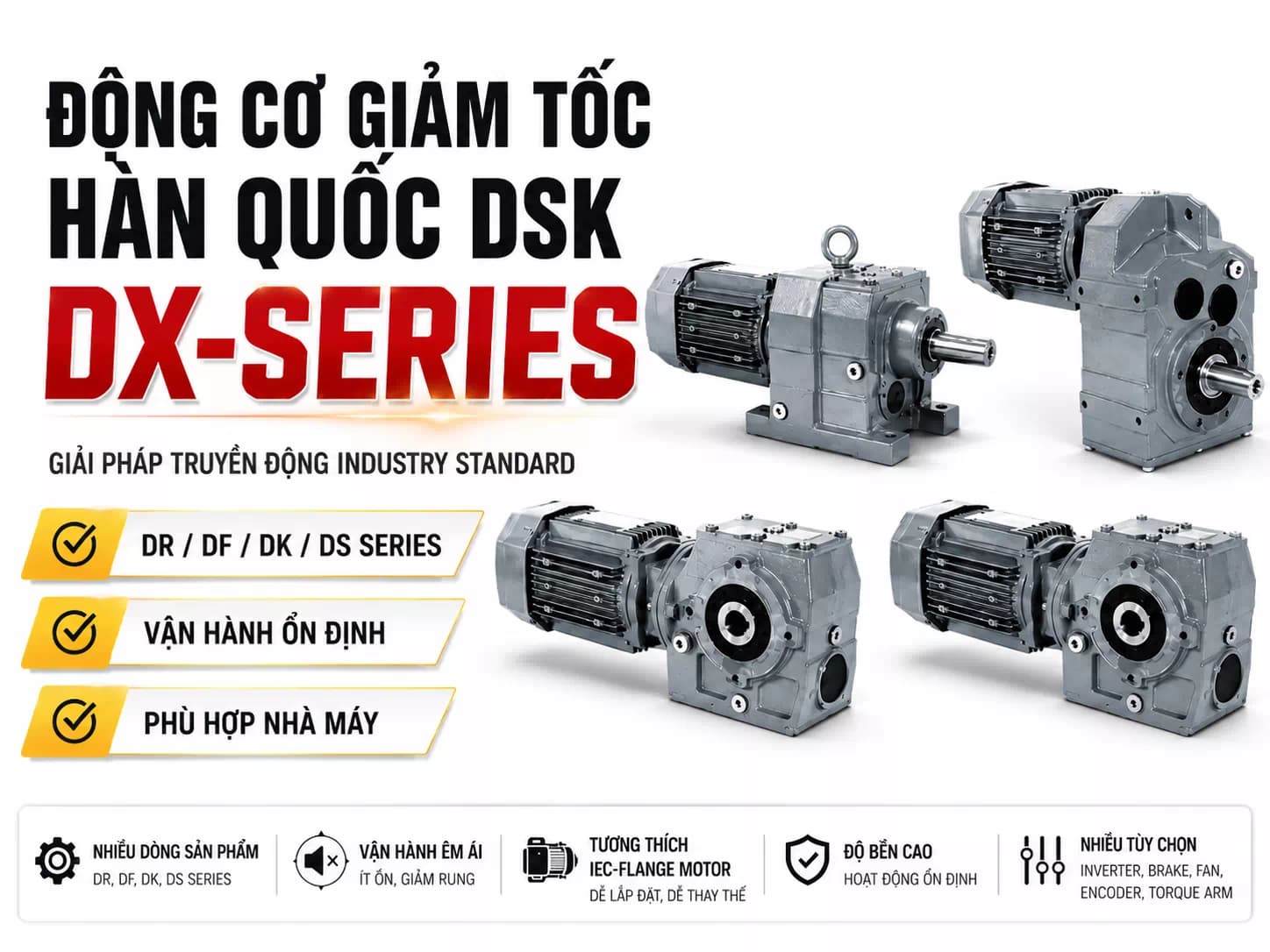

The DX Series is not a single model but an Industry Standard product group consisting of 4 main lines: DR-Series, DF-Series, DK-Series, and DS-Series. Each line features a different transmission structure, helping users easily select based on requirements for load, speed, transmission direction, and installation space.
In applications such as conveyors, agitators, packaging machines, feeders, screw conveyors, rotary tables, and automation lines, the DSK DX Series geared motor is a suitable choice for businesses needing durable, stable transmission equipment with a clear Korean brand.
What are the DSK DX Series lines?
The DSK DX Series consists of 4 main gear motor groups, meeting various industrial transmission types.
Series | English Name | Main Features | Suitable Applications |
|---|---|---|---|
DR-Series | Helical Geared Motors | Helical gears, inline transmission, high efficiency | Conveyors, packaging machines, production machinery |
DF-Series | Parallel Shaft Helical Geared Motors | Parallel shaft, compact design, easy layout | Conveyors, feeders, narrow spaces |
DK-Series | Helical Bevel Geared Motors | Helical bevel gears, right-angle transmission, high torque | Agitators, heavy-duty conveyors, mixers |
DS-Series | Helical Worm Geared Motors | Worm gear, compact design, high gear ratio | Packaging machines, rotary tables, light conveyors |
Thanks to various configurations, the DSK DX Series can meet requirements from light and medium loads to systems requiring high torque and continuous operation.
Advantages of DSK DX Series Geared Motors
Industry Standard Design
The DSK DX Series is developed with an Industry Standard orientation, suitable for industrial machinery systems requiring stability, easy installation, and easy replacement. This design makes the product suitable for many production lines in Vietnam.
Diverse Product Range
With 4 lines (DR, DF, DK, and DS), the DSK DX Series allows for the selection of various transmission types: inline, parallel shaft, right-angle, and helical worm. This helps engineers choose the right product according to installation space and actual load requirements.
Quiet and Low-Noise Operation
DSK DX Series geared motors are designed for stable operation, reducing noise and limiting vibration during work. This is a crucial factor for production lines running continuously.
Compatible with IEC-Flange Motors
The DX Series supports IEC-Flange motor mounting, making replacement, assembly, and integration into machinery more flexible. This is an advantage when maintenance or motor replacement is needed in the factory.
Many Options for Practical Applications
The DSK DX Series can combine many options such as inverter motors, brakes, axial fans, encoders, or torque arms depending on application requirements. These options are especially useful when the system needs speed adjustment, load holding, better cooling, or signal feedback to the controller.
Details of the DSK DX Series Lines
The DX Series consists of 4 main lines: DR, DF, DK, and DS, suitable for many industrial transmission types.
DR-Series – Helical Geared Motors
DR-Series are helical geared motors, suitable for inline transmission applications requiring high efficiency and stable operation.
DR-Series are commonly used for conveyors, packaging machines, feeders, and general production machinery. This is a suitable choice when a reliable, easy-to-apply, and easy-to-maintain geared motor line is needed.
DF-Series – Parallel Shaft Helical Geared Motors
DF-Series are parallel shaft geared motors using helical gear mechanisms. This design makes the transmission unit more compact, suitable for systems with limited installation space.
DF-Series are commonly used for conveyors, feeders, material handling equipment, and systems requiring the motor to be mounted parallel to the load shaft.
DK-Series – Helical Bevel Geared Motors
DK-Series are helical bevel geared motors, suitable for applications requiring right-angle transmission, high torque, and good load capacity.
This line is often chosen for agitators, mixers, medium-to-heavy duty conveyors, feeders, and production lines requiring stable long-term operation.
DS-Series – Helical Worm Geared Motors
DS-Series are helical worm geared motors. This line has a compact design, suitable for applications requiring high gear ratios and limited installation space.
DS-Series are commonly used for light conveyors, packaging machines, rotary tables, turning mechanisms, small feeders, and light-to-medium duty agitators.
Quick Comparison of DR, DF, DK, and DS Series
Criteria | DR-Series | DF-Series | DK-Series | DS-Series |
|---|---|---|---|---|
Transmission Type | Helical gear | Parallel shaft | Helical bevel gear | Helical worm gear |
Transmission Direction | Inline | Parallel | Right-angle | Right-angle |
Main Advantage | High efficiency, easy application | Compact, space-saving | High torque, good load capacity | Compact, high gear ratio |
Suitable Load Level | Light to medium | Medium | Medium to heavy | Light to medium |
Notable Application | Conveyors, packaging machines | Conveyors, feeders | Agitators, mixers | Rotary tables, light conveyors |
Applications of DSK DX Series Geared Motors
DSK DX Series geared motors are used in conveyors, agitators, packaging machines, feeders, and automated production lines.
Industrial Conveyors
DSK DX Series geared motors help conveyors operate stably at low speeds, providing sufficient pulling force and reducing mechanical shock during startup. Depending on load and installation space, DR, DF, or DK series can be selected.
Agitators and Mixers
Agitators require high torque at low speeds. For applications involving thick solutions, large tanks, or heavier loads, the DK-Series is a suitable choice due to its helical bevel structure and good power transmission capability.
Packaging Machines
Packaging machines require uniform movement, low vibration, and easy speed control. DR, DF, or DS series can be selected depending on mechanical design and output speed requirements.
Feeders and Screw Conveyors
For feeders, the geared motor needs to create stable rotation speed and appropriate torque to feed materials evenly. The DSK DX Series has various transmission types to meet different feeder designs.
Automated Production Lines
In automated lines, geared motors need to operate durably, be easy to maintain, and be compatible with VFDs or control systems. The DX Series is suitable for many auxiliary transmission mechanisms in factories.
How to Select the Right DSK DX Series Geared Motor
To select the correct DSK DX Series geared motor, it is necessary to determine full technical information before ordering.
Determine Application Type
First, it is necessary to know if the equipment is for conveyors, agitators, packaging machines, feeders, screw conveyors, or rotary mechanisms. Each application has different load characteristics.
Examples:
Light conveyors: DR or DS series can be selected.
Conveyors in narrow spaces: DF-Series can be selected.
Agitators or loads requiring high torque: Consider DK-Series.
Rotary tables or compact mechanisms: DS-Series can be selected.
Determine Output Speed
Output speed depends on the motor speed and the gear ratio of the gearbox.
Reference formula:
Output Speed = Motor Speed / Gear Ratio
Example: If the motor rotates at approximately 1450 rpm and the system requires an output speed of 60 rpm, the required gear ratio is approximately 1:24. In this case, the closest gear ratio in the catalog can be selected.
Check Torque
Torque is a very important parameter when selecting a geared motor, especially for heavy-duty conveyors, agitators, or feeders.
Reference formula:
T = 9550 × P / n
Where:
Symbol | Meaning | Unit |
|---|---|---|
T | Output Torque | N.m |
P | Motor Power | kW |
n | Output Speed | rpm |
If the torque is insufficient, the geared motor may overheat, vibrate, make loud noises, or damage the gears quickly.
Check Installation Type
When selecting or replacing a geared motor, it is necessary to carefully check:
Foot-mounted or flange-mounted type.
Solid shaft or hollow shaft.
Output shaft direction.
Shaft diameter.
Shaft length.
Bolt hole position.
Whether a brake is needed.
Whether a VFD is used.
Installation space in the machine.
For cases of replacing old geared motors, it is recommended to compare with technical drawings to avoid incorrect installation dimensions.
Should a VFD be used for the DSK DX Series?
Yes. DSK DX Series geared motors can be combined with a VFD in applications requiring speed adjustment, soft starting, or changing speed according to production processes.
A VFD should be used when:
Adjusting conveyor speed is needed.
Agitators need to change speed according to material.
Reducing starting current is desired.
Limiting mechanical shock during startup is desired.
Controlling speed from a PLC or HMI is needed.
Better motor protection during operation is needed.
When using a VFD, it is necessary to set the correct motor parameters, limit low frequency if the motor does not have a forced cooling fan, and check cooling capacity when running slowly for a long time.
Why choose DSK Korean Geared Motors?
DSK Korean geared motors are suitable for businesses needing stable, durable transmission equipment with more consistent quality than many cheap general-purpose lines.
Reasons to choose DSK DX Series:
Clear Korean brand.
Many product lines for various transmission types.
Suitable for factories needing stable operation.
Easy to select models by power, gear ratio, and mounting type.
Can be combined with VFDs, brakes, encoders, or axial fans.
Suitable for conveyors, agitators, packaging machines, and industrial lines.
If your system needs to run many hours a day, needs to reduce the risk of downtime, and needs reliable transmission equipment, the DSK DX Series is worth considering.
MDriveTech Supplies DSK DX Series Geared Motors
MDriveTech provides industrial transmission and automation solutions, including DSK DX Series Korean geared motors, gearboxes, VFDs, electric motors, and related control equipment.
MDriveTech supports:
Consulting on selecting the right DR, DF, DK, or DS line according to application.
Checking power, output speed, and torque.
Cross-referencing models according to the DSK catalog.
Consulting on installation type, output shaft, flange, and necessary options.
Supporting the selection of VFDs to accompany geared motors.
Consulting on solutions for conveyors, agitators, packaging machines, and production lines.
Supporting catalogs, technical drawings, and product parameters upon request.
Contact for Consulting and Quotation of DSK Geared Motors
MDRIVETECH is a distributor and technical support provider for DSK Daesung geared motors in Vietnam. We support customers in selecting suitable models based on power, gear ratio, output speed, installation type, and practical application.
The technical team at MDRIVETECH is ready to consult on suitable transmission solutions for factories, machine manufacturers, conveyor systems, automation lines, and industrial equipment.
Hotline: 0868 789 647
Email: [email protected]
FAQ – Frequently Asked Questions about DSK DX Series
What is the DSK DX Series geared motor?
The DSK DX Series is the Industry Standard geared motor line from DSK Geared Motor / Daesung Korea, including DR-Series, DF-Series, DK-Series, and DS-Series, used for industrial transmission systems.
What lines does the DSK DX Series include?
The DSK DX Series includes 4 main lines: DR-Series helical geared motors, DF-Series parallel shaft helical geared motors, DK-Series helical bevel geared motors, and DS-Series helical worm geared motors.
What applications are DSK DX Series geared motors used for?
This line is suitable for conveyors, agitators, packaging machines, feeders, mixers, screw conveyors, rotary tables, and automated production lines.
Should I choose DR, DF, DK, or DS Series?
DR-Series is suitable for general transmission applications. DF-Series is suitable for narrow spaces and parallel shafts. DK-Series is suitable for medium-to-heavy loads requiring high torque. DS-Series is suitable for light-to-medium loads and requires a compact design.
Can the DSK DX Series be used with a VFD?
Yes. The DSK DX Series can be combined with a VFD to adjust speed, start softly, and protect the motor. When using a VFD, it is necessary to set the correct motor parameters and check cooling capacity at low speeds.
What should I check when replacing an old geared motor with a DSK DX Series?
It is necessary to check power, gear ratio, output speed, torque, installation type, shaft diameter, shaft length, flange, mounting direction, and overall dimensions according to technical drawings.
